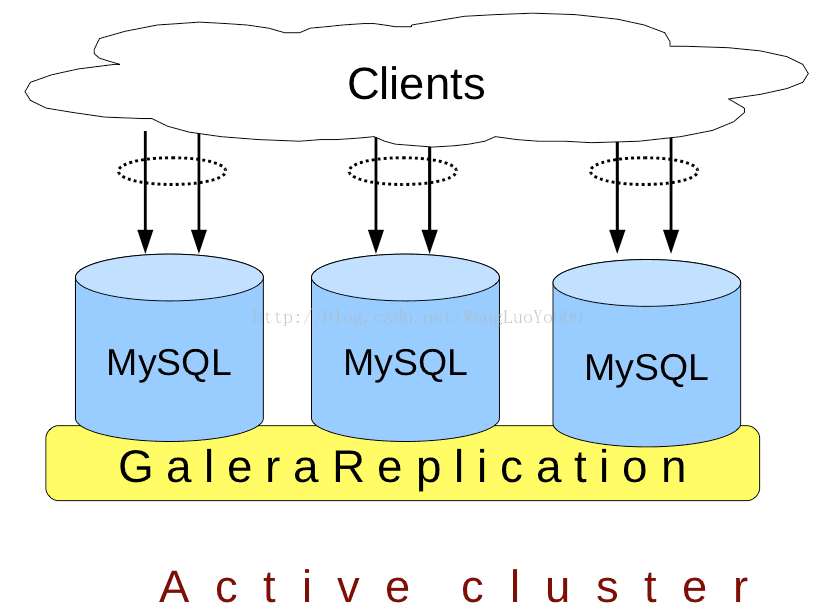

Galera cluster是一个多主同步数据库集群，基于同步复制技术和 Oracle 的 MYSQL/InnoDB。使用Galera Cluster时，您可以直接任意节点读取和写入。并且在丢失任何单个节点时可以不中断操作且无需处理复杂故障转移过程。
系统环境
主机配置
配置三个节点，使用openstack的控制节点
192.168.100.161 controller01
192.168.100.162 controller02
192.168.100.163 controller03
Haproxy配置
haproxy 添加以下配置
1
2
3
4
5
6
7
8
9
10
11
12
13
frontend vip-db
bind 192.168.100.160:3306
timeout client 90m
default_backend db-galera
backend db-galera
option httpchk
option tcpka
stick-table type ip size 1000
stick on dst
timeout server 90m
server controller01 192.168.100.161:3306 check inter 1s port 9200 backup on-marked-down shutdown-sessions
server controller02 192.168.100.162:3306 check inter 1s port 9200 backup on-marked-down shutdown-sessions
server controller03 192.168.100.163:3306 check inter 1s port 9200 backup on-marked-down shutdown-sessions
Copy 其中 192.168.100.160 是 vip 地址
数据库集群的安装
安装和配置组件（所有节点）
安装软件包
1
# yum install -y mariadb mariadb-galera-server mariadb-galera-common galera rsync xinetd
Copy
创建 /etc/my.cnf.d/openstack.cnf 文件，加入以下内容
1
2
3
4
5
6
7
8
9
10
# vim /etc/my.cnf.d/openstack.cnf
[mysqld]
bind-address = 192.168.100.161 #本机管理ip
default-storage-engine = innodb
innodb_file_per_table = on
max_connections = 4096
collation-server = utf8_general_ci
character-set-server = utf8
Copy
修改 mariadb 最大连接数
修改 /usr/lib/systemd/system/mariadb.service 文件加入以下内容
1
2
3
4
5
# vim /usr/lib/systemd/system/mariadb.service
[Service]
LimitNOFILE=10000
LimitNPROC=10000
Copy
1
# systemctl --system daemon-reload
Copy 配置galera cluster（所有节点）
编辑 /etc/my.cnf.d/galera.cnf 文件，修改如下内容
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
# cat > /etc/my.cnf.d/galera.cnf << EOF
[mysqld]
skip-name-resolve=1
binlog_format=ROW
default-storage-engine=innodb
innodb_autoinc_lock_mode=2
bind-address=192.168.100.161
wsrep_on=1
wsrep_provider=/usr/lib64/galera/libgalera_smm.so
wsrep_provider_options="pc.recovery=TRUE;gcache.size=300M"
wsrep_cluster_name="openstack_cluster"
wsrep_cluster_address="gcomm://controller01,controller02,controller03"
wsrep_node_name="controller01" #主机名
wsrep_node_address="192.168.100.161" #ip地址
wsrep_slave_threads=1
wsrep_certify_nonPK=1
wsrep_max_ws_rows=131072
wsrep_max_ws_size=1073741824
wsrep_debug=0
wsrep_convert_LOCK_to_trx=0
wsrep_retry_autocommit=1
wsrep_auto_increment_control=1
wsrep_drupal_282555_workaround=0
wsrep_causal_reads=0
wsrep_notify_cmd=
wsrep_sst_method=rsync
wsrep_sst_auth=root:
EOF
Copy 配置 haproxy 健康检查（所有节点）
安装 xinted 服务
1
# yum install xinetd -y
Copy
登录数据库，创建 clustercheck 用户，并设置其本地访问数据库的权限
1
2
3
# systemctl start mariadb.service
# mysql -e "CREATE USER 'clustercheck'@'localhost' IDENTIFIED BY 'root1234';"
# systemctl stop mariadb.service
Copy
为 clustercheck 用户创建配置文件 /etc/sysconfig/clustercheck
1
2
3
4
5
6
# cat > /etc/sysconfig/clustercheck << EOF
MYSQL_USERNAME="clustercheck"
MYSQL_PASSWORD="root1234"
MYSQL_HOST="localhost"
MYSQL_PORT="3306"
EOF
Copy
创建个配置 HAProxy 监控服务 /etc/xinetd.d/galera-monitor
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
# cat > /etc/xinetd.d/galera-monitor << EOF
service galera-monitor
{
port = 9200
disable = no
socket_type = stream
protocol = tcp
wait = no
user = root
group = root
groups = yes
server = /usr/bin/clustercheck
type = UNLISTED
per_source = UNLIMITED
log_on_success =
log_on_failure = HOST
flags = REUSE
}
EOF
Copy
启动 xineted 并设置开机自启
1
2
3
# systemctl daemon-reload
# systemctl enable xinetd
# systemctl start xinetd
Copy 完成安装
创建数据库集群
1
# pcs resource create galera-cluster ocf:heartbeat:galera enable_creation=true wsrep_cluster_address="gcomm://controller01,controller02,controller03" additional_parameters='--open-files-limit=16384' enable_creation=true meta master-max=3 ordered=true op promote timeout=300s on-fail=block --master
Copy 设置资源依赖
1
# pcs constraint order start haproxy-clone then galera-cluster-master
Copy 验证
查看 pacemaker 资源
1
2
3
4
# pcs resource
……
Master/Slave Set: galera-cluster-master [galera-cluster]
Masters: [ controller01 controller02 controller03 ]
Copy 查看集群状态
1
2
3
4
5
6
7
8
9
MariaDB [(none)]> SHOW STATUS like 'wsrep_cluster_%';
+--------------------------+--------------------------------------+
| Variable_name | Value |
+--------------------------+--------------------------------------+
| wsrep_cluster_conf_id | 3 |
| wsrep_cluster_size | 3 |
| wsrep_cluster_state_uuid | 83d58f96-e6e3-11e8-82ab-87f7bf579cc6 |
| wsrep_cluster_status | Primary |
+--------------------------+--------------------------------------+
Copy wsrep_cluster_size 为 3 集群成功创建。
害死人
根本不可能出现3个master的情况啊
我目前安装教程只安装了galera，并且能够手动启动galera，然后创建galera-cluster资源后，查看 pacemaker 资源如下：
Master/Slave Set: galera-cluster-master [galera-cluster]
galera-cluster (ocf::heartbeat:galera): FAILED node3
Slaves: [ node1 node2 ]
Failed Actions:
last-rc-change=’Fri Apr 12 12:02:47 2019’, queued=0ms, exec=5374ms
当然数据库也一个节点没有启起来，这里我的理解是不需要手动启动galera吧，pacemaker会自动启动？
@geekspeng , Apr 12 12:10:12 node3 lrmd[1453]: notice: galera-cluster_promote_0:69557:stderr [ ocf-exit-reason:MySQL server failed to start (pid=69852) (rc=0), please check your installation ]
Apr 12 12:10:12 node3 crmd[111674]: notice: Result of promote operation for galera-cluster on node3: 1 (unknown error)
Apr 12 12:10:12 node3 crmd[111674]: notice: node3-galera-cluster_promote_0:354 [ ocf-exit-reason:MySQL server failed to start (pid=69852) (rc=0), please check your installation\n ]
@geekspeng , 你好 我也遇到了这个问题，请问你解决了吗
